Metal Wire Mesh Structured Packing AX250, BX500, CY700
Metal Wire Gauze Packing is characteristic of good low-load properties, large number of plates per meter in theory, and the number of plates will decrease with gas load increasing. The packing can meet the demand for accurate, large-scale, high vacuum distilling apparatus, and provide convenient conditions for distilling separation of some system difficult for separating, heat-variable system and high-purity products.
Metal Wire Gauze Packing is characteristic of good low-load properties, large number of plates per meter in theory, and the number of plates will decrease with gas load increasing. The packing can meet the demand for accurate, large-scale, high vacuum distilling apparatus, and provide convenient conditions for distilling separation of some system difficult for separating, heat-variable system and high-purity products.
Material:
Metal Wire Gauze packing is available in a wide range of materials, include stainless steels, 304, 316, 316L, Carbonsteels. Aluminium, copper bronze etc. Further materials available on request.
Application:
250AX Precision rectification for high productive capacity and less theoretical plate number.
500BX Vacuum rectification for thermosensitive system and hard separation system, especially suitable for rectification with pressure lower than 7KPa .
700CY Separation of isotopic compound and isomeric compound.
Matal Wire Gauze Packing's technical specification:
| Type | specifific surface are m2/m3 | Void Volume % | Bulk density Kg/m3 | Wave Height mm | Theoretical plate
number
m-1 | P
Pa/n
| Max.F-factor m/s(kg/m3)0.5 |
| 250(AX) | 250 | 95 | 125 | 12 | 2.5-3.0 | 10-40 | 2.5-3.5 |
| 500(BX) | 500 | 90 | 250 | 6.5 | 4-5 | 40 | 2.0-2.4 |
| 700(CY) | 700 | 85 | 350 | 4.5 | 8-10 | 67 | 1.5-2.0 |
.
Product photo

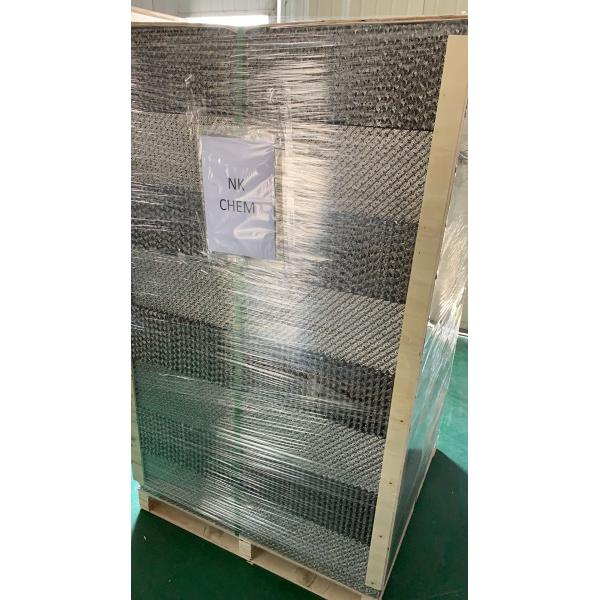

Loading in container
